11x12m Machine Room Section View | AutoCAD Drawing File

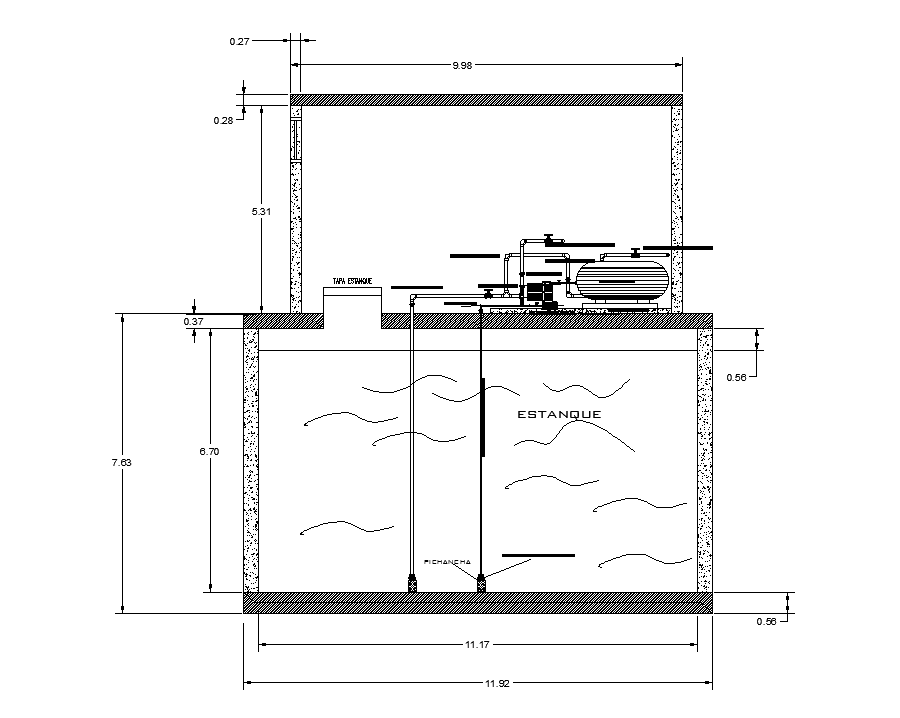

Section view of 11x12m Machine room plan has given in the Autocad drawing file. Total height of the building is 13.25m. This is machine drawing. Towards water supply, towards fire system network, mechanical internal combustion pump, electric pump, hydro-pneumatic tank and other details are given in this model. For more details download the Autocad drawing file. Thank you for downloading the Autocad file and other CAD program files from our website.
